2 1/4-inch and 3 1/8-inch are the two measurements people see most often when shopping for thermal paper. They identify roll width, but width alone does not confirm compatibility. Two rolls with the same width can have different diameters, lengths, paper weights and core styles.
This guide explains the measurements that matter so you can choose a roll that physically fits your equipment and matches your business volume.

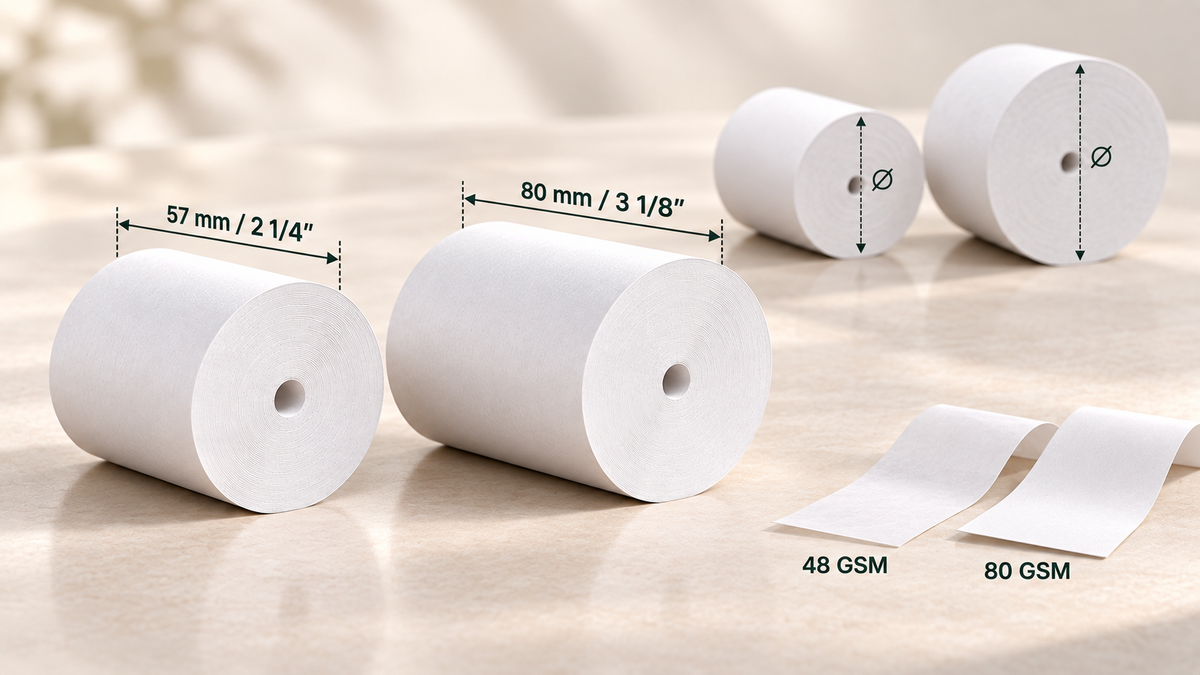

2 1/4 vs 3 1/8: what is the difference?
| Common width | Metric approximation | Typical use |
|---|---|---|
| 2 1/4 in | 57–58 mm | Payment terminals, compact devices and small printers |
| 3 1/8 in | 79–80 mm | Countertop POS and receipt printers |
2 1/4-inch rolls are narrower and often used in payment terminals and compact printers. 3 1/8-inch rolls create a wider receipt and are common in Epson, Star, Bixolon and other countertop POS printers.
Roll length is not roll diameter
A common mistake is assuming every 225 ft roll has the same outside diameter. It does not. Final diameter depends on paper thickness and the centre diameter, among other factors. A well-specified paper product should therefore identify length, gsm and actual outside diameter whenever possible.
What does gsm mean?
GSM means grams per square metre and describes the mass of the paper. Within a similar paper family, a higher gsm generally feels more substantial. Actual caliper also depends on how the paper is manufactured, so gsm is not a direct micron measurement.
For the end user, the practical difference is often receipt feel and how much footage can fit within a given roll diameter.
Why the centre matters
Some rolls use a plastic or cardboard tube. Others are coreless, with only an opening through the centre. Core configuration can change how much space is available for paper and must work with the printer's feed system.
Compact sizes: 30, 50 and 60 ft
For 2 1/4-inch equipment, 30, 50 and 60 ft lengths are common. A 30 ft roll may be useful when the paper compartment is especially small. 50 and 60 ft formats offer more capacity when they remain within the device's maximum diameter.
Countertop sizes: 200, 225 ft and beyond
For 3 1/8-inch printers, 200 and 225 ft are common standards. Some commercial applications also use 270, 273, 290 ft or other lengths. Read our detailed 3 1/8 roll length guide for a closer comparison.
The most reliable way to choose
- Identify the exact equipment model.
- Confirm the required width: 57/58 mm or 79/80 mm.
- Confirm the maximum compartment diameter.
- Check the required centre or core style.
- Select length and gsm based on usage and available space.
If you do not want to check those specifications manually, use our compatibility finder.
Bottom line
The right thermal roll is a combination of measurements. Width gets you into the right product family; diameter, length, gsm and core style confirm whether the roll will truly fit. That approach is more reliable than ordering from one number printed on an old carton.
